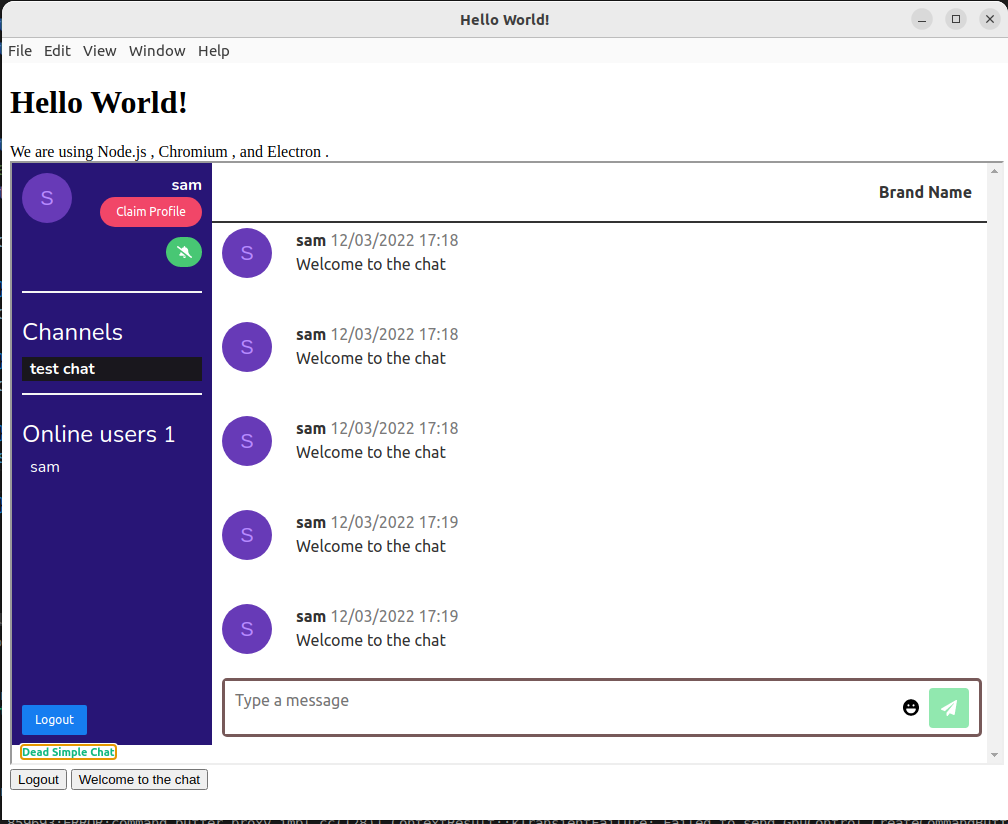

Electron Chat App for Desktop
Completed Electron Chat App

Electron Chat App Tutorial: Building a Desktop Chat App

Dead Simple Chat Team

Table of Contents

Dead Simple Chat offers prebuilt Chat that can be added in minutes to any app or website. Can be completely customized and offers powerful API and SDK.

In this article we are going to learn how to build an electron application in easy to understand steps.

You can create a new Electron App or Add chat to your existing Electron application.

First we are going to learn how to add chat to your existing electron application. If you don't have and existing application, you can directly go to the step 4 and start from there.

💡
New to DeadSimpleChat? It's a turn key chat that you can easily add to your website or App —without any complicated code. For Virtual / Live events, SaaS App, Social Platform, Education, Gaming, Finance  Sign Up for Free

Step 1: Add Chat to your existing Electron Application

I have scaffolded a electron application that I am going to add chat to.

It is a basic electron application just bare bones "hello world" app.

Here is the index.html file for your reference

<!DOCTYPE html>
<html>
  <head>
    <meta charset="UTF-8">
    <!-- https://developer.mozilla.org/en-US/docs/Web/HTTP/CSP -->
    <meta http-equiv="Content-Security-Policy" content="default-src 'self'">
    <script src="https://cdn.deadsimplechat.com/sdk/1.0/dschatsdk.min.js"></script>
    <title>Hello World!</title>
  </head>
  <body>
    <h1>Hello World!</h1>
    We are using Node.js <span id="node-version"></span>,
    Chromium <span id="chrome-version"></span>,
    and Electron <span id="electron-version"></span>.
  </body>
</html>

and the main.js file

const { app, BrowserWindow } = require('electron')

const createWindow = () => {
    const win = new BrowserWindow({
      width: 800,
      height: 600
    })

    win.loadFile('index.html')
    win.webContents.openDevTools()
  }

  app.whenReady().then(() => {
    win.webContents.openDevTools()
    createWindow()
  })

  app.on('window-all-closed', () => {
    if (process.platform !== 'darwin') app.quit()
  })

  app.whenReady().then(() => {
    createWindow()

    app.on('activate', () => {
      if (BrowserWindow.getAllWindows().length === 0) createWindow()
    })
  })
main.js

To add chat to your electron application you will need a chat provider.

go to deadsimplechat.com and create a free account there by clicking on the Get Started button.

Step 2: Generating code for the chat

Once you have created an account on the DeadSimpleChat website you will land up in the dashboard section

there click on the create a chat room button to create a new chat room.

You will be asked to name the chat room and there would be the ability to enable features that you need in the chat

There will be options for UI customization  and language translation as well.

After that you will land up in the embed section of the chat.

Here you will see the embed code for the chat. Copy that code

Alternatively you can reach the embed code by going to

Dashboard -> Chat rooms -> Embed code

Here you can customize the size of the chat that you add to the electron application.

Now, let's move on to the next step of adding this chat to your electron application

Step 3: Add Chat to your Electron Application

In the index.html files paste the iframe tag inside the body tag where you want the chat to appear.

and in the content security meta tag add the following code:

original content security meta tag:

    <meta http-equiv="Content-Security-Policy" content="default-src 'self'">
content security meta tag

code added to allow DeadSimpleChat content security meta tag

<meta http-equiv="Content-Security-Policy" content="frame-src https://deadsimplechat.com/CGOC0byXC; default-src 'self'; script-src https://cdn.deadsimplechat.com/sdk/1.0/dschatsdk.min.js 'unsafe-inline'">
content security meta tag updated

I have added the iframe tag inside the body tag where I want the chat to appear and I have updated the content security meta tag to allow the deadsimplechat website inside the Electron application.

Here is how the full code looks like:

<!DOCTYPE html>
<html>
  <head>
    <meta charset="UTF-8">
    <!-- https://developer.mozilla.org/en-US/docs/Web/HTTP/CSP -->
    <meta http-equiv="Content-Security-Policy" content="frame-src https://deadsimplechat.com/CGOC0byXC; default-src 'self'; script-src https://cdn.deadsimplechat.com/sdk/1.0/dschatsdk.min.js 'unsafe-inline'">
    <script src="https://cdn.deadsimplechat.com/sdk/1.0/dschatsdk.min.js"></script>
    <title>Hello World!</title>
  </head>
  <body>
    <h1>Hello World!</h1>
    We are using Node.js <span id="node-version"></span>,
    Chromium <span id="chrome-version"></span>,
    and Electron <span id="electron-version"></span>.

    <iframe id="chat-frame" src="https://deadsimplechat.com/CGOC0byXC" width="100%" height="600px"></iframe>

    <button id="logout-btn">Logout</button>
<script>

  (async () => {
    const sdk = new DSChatSDK("CGOC0byXC", "chat-frame", "pub_7172586270477a656a3863587a594f46566e736839307737544b532d3463484c4e524b5743676b7733336d5151767a4b")
    // Call the connect method to connect the SDK to the Chat iFrame.
    await sdk.connect().then(
      () => {
        document.getElementById("logout-btn").addEventListener("click", function() {
          sdk.logout();
        });
      }
    );
})();

</script>
  </body>
</html>
index.html

and here is how the final application looks like :

Electron Chat App

Step 4: Add Chat to new Electron Application

To add chat to a new electron application first we need to create a new electron application

type the following code to scaffold a new electron application

mkdir my-electron-app && cd my-electron-app
npm init

this will create a new directory called the my-electron-application and cd into that directory

npm init command will initialize a new project for you.

Then install the electron by typing the following command

npm install --save-dev-electron

type the npm run start command to start the electron application

run the node -v and npm -v commands to check which version of node and npm you are using. We recommend using the latest LTS versions when starting out a new application

Using Chat features with API and SDK

Now that we have added chat to the new electron application and also demonstrated how we can add chat to an existing electron application now is the time to connect the API and SDK of the chat to the electron application

Adding Chat SDK to the electron application

Paste the below code to import the chat to the electron application in your index.html file

<script src="https://cdn.deadsimplechat.com/sdk/1.0/dschatsdk.min.js"></script>
index.html

We already added the code to allow the SDK from the electron application in the content security meta tag. If you have not done so add the following meta tag and delete the old one

 <meta http-equiv="Content-Security-Policy" content="frame-src https://deadsimplechat.com/CGOC0byXC; default-src 'self'; script-src https://cdn.deadsimplechat.com/sdk/1.0/dschatsdk.min.js 'unsafe-inline'">

This will allow the electron app to communicate with the SDK

Connecting the Chat SDK to the iframe

We have imported the SDK and we need to initialize the SDK. This process is quite simple you need to call the DSChatSDK constructor that accepts the following parameters:

  1. Chat RoomID
  2. ID of the iframe
  3. Public API Key

The Public API key is available Dashboard -> Developer

Create a script tag in the index.html and add the following code to connect the chat to the SDK

(async () => {
    // DSChatSDK construction accepts two parameters:
    // 1. Chat Room Id
    // 2. ID of the iFrame tag
    // 3. Dead Simple Chat Public API Key.
    const sdk = new DSChatSDK("sq94k9OZV", "chat-frame", "pub_5738506b4e495f744e74556e666a644a68766f4b69767753596239666e473533271517a485775656f354978795830")
    // Call the connect method to connect the SDK to the Chat iFrame.
    await sdk.connect();
});
connecting to chat SDK

This will initialize the SDK and connect it with the chat iframe

Let us now test that we have successfuly initialized the connection by creating a simple logout button and calling the SDKs logout function to log the user out of the chat

Testing the Chat SDK

In the body tag create a button with the id logout-btn and write the following code in the the script tag which has the SDK

  (async () => {
    const sdk = new DSChatSDK("CGOC0byXC", "chat-frame", "pub_7172586270477a656a3863587a594f46566e736839307737544b532d3463484c4e524b5743676b7733336d5151767a4b")
    // Call the connect method to connect the SDK to the Chat iFrame.
    await sdk.connect().then(
      () => {
        document.getElementById("logout-btn").addEventListener("click", function() {
          sdk.logout();
        });
      }
    );
})();

Here we are calling the SDKs logout function when the logout button is clicked. The code for the logout button looks like

  <button id="logout-btn">Logout</button>

and the index.html file looks like:

<!DOCTYPE html>
<html>
  <head>
    <meta charset="UTF-8">
    <!-- https://developer.mozilla.org/en-US/docs/Web/HTTP/CSP -->
    <meta http-equiv="Content-Security-Policy" content="frame-src https://deadsimplechat.com/CGOC0byXC; default-src 'self'; script-src https://cdn.deadsimplechat.com/sdk/1.0/dschatsdk.min.js 'unsafe-inline'">
    <script src="https://cdn.deadsimplechat.com/sdk/1.0/dschatsdk.min.js"></script>
    <title>Hello World!</title>
  </head>
  <body>
    <h1>Hello World!</h1>
    We are using Node.js <span id="node-version"></span>,
    Chromium <span id="chrome-version"></span>,
    and Electron <span id="electron-version"></span>.

    <iframe id="chat-frame" src="https://deadsimplechat.com/CGOC0byXC" width="100%" height="600px"></iframe>

    <button id="logout-btn">Logout</button>
<script>

  (async () => {
    const sdk = new DSChatSDK("CGOC0byXC", "chat-frame", "pub_7172586270477a656a3863587a594f46566e736839307737544b532d3463484c4e524b5743676b7733336d5151767a4b")
    // Call the connect method to connect the SDK to the Chat iFrame.
    await sdk.connect().then(
      () => {
        document.getElementById("logout-btn").addEventListener("click", function() {
          sdk.logout();
        });
      }
    );
})();

</script>
  </body>
</html>
index.html

Here is how your electron chat application looks like:

logout button chat sdk
user logged out chat sdk

When the logout button is clicked the user is locked out of the chat room

There are a whole host of SDK methods and events available. We will be learning about a few of them below.

For the complete documentation you can refer to the developer docs

Sending Messages to your Electron Chat app using the Chat SDK

To give you another example of how you can use the chat SDK in your electron application, We will be sending a chat message to the electron app using the sdk

to send the message we will be using the send message method of the chat sdk

here is the documentation for the send message method

For the purposes of this example we will send sending a hard coded "Welcome to the chat" Message, but in the production app you can send anything you want

Let us create a button that when clicked will send the message to the chat room.

The button will call the sdk sendMessage method.

We have created the button and gave it the id sendMessage-btn

<button id="sendMessage-btn">Welcome to the chat</button>
Welcome to the chat message

Now let us call the sendMessage function of the sdk in the script tag. the code looks like this:

  (async () => {
    const sdk = new DSChatSDK("CGOC0byXC", "chat-frame", "pub_7172586270477a656a3863587a594f46566e736839307737544b532d3463484c4e524b5743676b7733336d5151767a4b")
    // Call the connect method to connect the SDK to the Chat iFrame.
    await sdk.connect().then(
      () => {
        document.getElementById("logout-btn").addEventListener("click", function() {
          sdk.logout();
        });
        document.getElementById("sendMessage-btn").addEventListener("click", function() {
          sdk.sendMessage('Welcome to the chat');
        });
      }
    );
})();
script tag

and this is how the electron application looks like:

Electron Chat app

When you click the Welcome to the chat button a message is sent to the chat room.

Hence we have demonstrated how to send a message to the electron chat application with DeadSimpleChat SDK

List of commonly used Chat SDK methods that can be used with Electron

Here is the list of commonly used SDK methods. For a complete list of methods refer to the Chat SDK documentation

  1. joinRoom(Options)
  2. Logout
  3. SendMessage
  4. sendPrivateMessage
  5. getMessage
  6. replyMessage
  7. getOnlineUsers
  8. banIp
  9. banUser

  1. joinRoom(Options): Using the joinRoom method you can enter a user into the chat room. The joinRoom metho can be callled using one of the three optional parameters these are 1. username, 2. accessToken, 3. email.

You can also specify the optional profile picture and custom metadata for the user

2. Logout: As we have demonstrated above the logout method is used to log the user out of the chat room

3. SendMessage: We have also used this method in the demo above. You can send messages to the chat room using the sendMessage

4. SendPrivateMessage: Call this method to send private 1-1 message to a user. This method can only be called if 1-1 messaging is enabled in the chat room

5. getMessages: You can call this method to get messages from the chat room. You can download the messages from the chat room by calling this method

6.  replyMessage: You can reply to a specific message by calling this method

7. getOnlineUsers: You can get the number of users that are online by calling this method

8. banIp: you can ban an IP address from the chat. The users with that specific IP address will not be able to enter the chat

9. banUser: ban a specific user from the chat room.

List of commonly used Chat SDK events that can be used with Electron

Events are triggered when something happens in the chat room. for example if you like to know whenever a message is sent in the chat room.

You can listen to the message event and write the code to do something when a message is sent in the chat room

The code for the message event is


frame1.on("message", (message) => {
    console.log("new message", message);
});

example of a Chat SDK event used in Electron application

Let us listen to the message event in the electron application and send and alert message whenever a message is sent in the chat room

Let us go back to the electron chat application that we have been working on.

if we send a message to our electron chat app an alert message should appear letting us know that a message has appeared in the chat room

Write the below code in the script where we connect

        sdk.on("message",(message)=>{
          alert("new message", message);
        })

The index.html looks like this

<!DOCTYPE html>
<html>
  <head>
    <meta charset="UTF-8">
    <!-- https://developer.mozilla.org/en-US/docs/Web/HTTP/CSP -->
    <meta http-equiv="Content-Security-Policy" content="frame-src https://deadsimplechat.com/CGOC0byXC; default-src 'self'; script-src https://cdn.deadsimplechat.com/sdk/1.0/dschatsdk.min.js 'unsafe-inline'">
    <script src="https://cdn.deadsimplechat.com/sdk/1.0/dschatsdk.min.js"></script>
    <title>Hello World!</title>
  </head>
  <body>
    <h1>Hello World!</h1>
    We are using Node.js <span id="node-version"></span>,
    Chromium <span id="chrome-version"></span>,
    and Electron <span id="electron-version"></span>.

    <iframe id="chat-frame" src="https://deadsimplechat.com/CGOC0byXC" width="100%" height="600px"></iframe>

    <button id="logout-btn">Logout</button>
    <button id="sendMessage-btn">Welcome to the chat</button>
<script>

  (async () => {
    const sdk = new DSChatSDK("CGOC0byXC", "chat-frame", "pub_7172586270477a656a3863587a594f46566e736839307737544b532d3463484c4e524b5743676b7733336d5151767a4b")
    // Call the connect method to connect the SDK to the Chat iFrame.
    await sdk.connect().then(
      () => {
        document.getElementById("logout-btn").addEventListener("click", function() {
          sdk.logout();
        });
        document.getElementById("sendMessage-btn").addEventListener("click", function() {
          sdk.sendMessage('Welcome to the chat');
        });
        document.getElementById("sendMessage-btn").addEventListener("click", function() {
          sdk.sendMessage('Welcome to the chat');
        });
        sdk.on("message",(message)=>{
          alert("new message", message);
        })
      }
    );
})();

</script>
  </body>
</html>
index.html

Now we are listening on the message event of the sdk and whenever a message is sent into the chat room we are triggering an alert with the message inside it.

You can try sending a message in the chat room and see the alert come in

Here are some of the important events from the DeadSimpleChat SDK. For a complete list of events refer to the chat SDK events documentation

  1. message: Message event is triggered when someone sends a message in the chat room.
  2. messageHistory: MessageHistory event is triggered when someone joins a chat room. The messageHistory event containes the last 18 messages that are present in the chat room
  3. messageDeleted: messageDeleted event is triggered when a message is deleted in the chat room. It contains the deleted message and also the id of the user and the customer
  4. roomLimitreached: roomLimitReached is triggered when the capacity of the room is reached.
  5. notAuthorized: when something unauthorized happens the notAuthorized event is triggered
  6. messageLiked: when a message is liked the messageLike event is triggered. It contains the contents of the message which is liked and id of the user who liked the message and also who sent the message
  7. conversationCreated: When a new conversation is created. The conversationCreated method is triggered
  8. youAreBanned: the event is triggered when the user is banned
  9. channelCreated: When a channel is created the channelCreated method is triggered

List of commonly used Chat API calls that can used with Electron

There are a whole host of Chat API available to use with DeadSimpleChat and Electron.

Here are a list of important Chat APIs for a complete list of Chat APIs refer to the REST API documentation of DeadSimpleChat

There are six sections of chat api

  1. Chat room api: The chat room API contains a list of APIs related to the chat rooms. These APIs include:
  • Get All Chat rooms
  • Get a specific chat room
  • delete a chat room
  • create a chat room
  • update chat room
  • eject all users from chat room'
  • turn off chat room
  • turn on chat room
  • and many others

2. Channels API

Channels API are specific to channels. Channels are chat rooms inside of chat rooms, they are optional.

You can enable them if you need sub rooms for specific topics and audiences inside a chat room

3. Presence API

The Presence API is used for fetching the number of users that are online at any time.

4. User and Moderator API

With users and Moderator API, you can create users with specific usernames and add them to specific chat that they need to be in

You can create users on the fly, update and delete them

You can also create moderators and assign them to specific chat rooms with API

The Moderator and Users API include the following APIS

  • Create-user
  • Create-Moderator
  • update-user
  • update-moderator
  • validate-access-token
  • invalidate-access-token
  • and many more

For a complete list of user and moderator api refer to the user and moderator api documentation

5. Messages API

You can send messages to the chat room using the messages api. You can send

6. Export API

Using the Export API you can export the chat messages and files and images.

A word about Webhooks in Electron

Webhooks are automated messages that are sent when something happens. With the help of DeadSimpleChat Webhooks you can have a deep integration with any app out there

You can integrate DeadSimpleChat with any other app like slack, trello, email or your app

An example of using webhooks would be: use webhook to send a message to slack when someone joins a chat room

Webhooks will send a message to a url when something happens in the chat

Webhooks

You can enable the webhooks in

Chat -> Dashboard -> Settings -> Webhooks

Webhooks are sent as an HTTP POST request.

Implementing Single Sign On to your Electron Chat Application

Using the Single Sign On functionality you can automatically login users into the chat room that are on your website or app.

There are two types Single Sign On available with DeadSimpleChat

  1. Basic Single Sign On
  2. Advanced Sigle Sign On
Basic SSO

Basic SSO is easy to implement. With basic SSO logining in a user is as simple as passing the username as  a query parameter.

One thing to note is that you cannot login moderators using the basic SSO

Advantages of Basic SSO:

  1. Easy to implement
  2. Does not require coding knowledge

Disadvantages of Basic SSO

  1. Less secure than Advanced SSO
  2. Cannot login Moderators using basic SSO

If you want to learn more about how to implement basic SSO here is the tutorial

Advanced SSO

Advanced SSO is more secure by require more coding skills to implement.

Advanced SSO is secure because it requires access Token to login the user into the chat room.

Advantages of Advanced SSO

  1. More Secure than Basic SSO
  2. Can login Moderators using Advanced SSO
  3. Requires Access Token to login

Disadvantages to Advanced SSO

  1. Requires a bit of coding knowledge to implement

If you want to learn more about how to implement Advanced SSO here is the tutorial

Conclusion

Here is the Electron Chat app code on Github

In this article we have learnt how to Electron desktop chat app using Chat SDK and API from DeadSimpleChat.

Having your own desktop application is awesome, you dont need to depend on third party solutions and can own all the data that is in the chat platform.

With electron you can publish the chat app for all the different platforms like Mac, Windows and linux.

If you have any questions / concerns let us know at support[at]deadsimplechat.com
